RackMount Kit for SonicWall SOHO 250 / TZ SOHO


RM-SW-T7:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

The RM-SW-T7 gives you the ability to mount your SonicWall desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixated to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your SonicWall device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

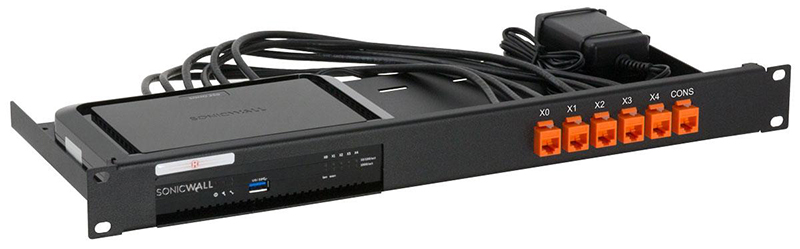

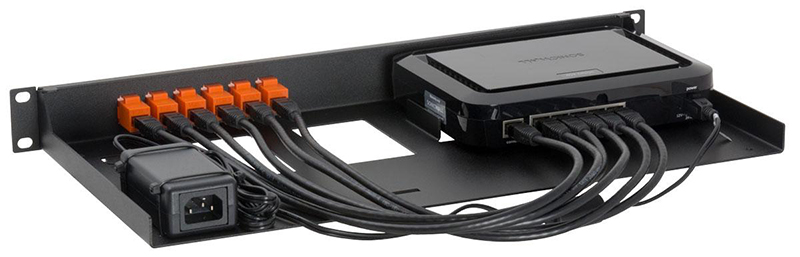

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Sonicwall
For Use	SonicWall SOHO 250 SonicWall TZ SOHO
Color	RAL 9005 Jet Black
Height	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	6
Console port to the front	Yes
Cables	6x 0.5m cables
Couplers	6x RJ45 couplers
What's in the box	1x SW-Rack + RJ45 couplers Cables Assembly materials Installation guide

Download the RM-SW-T7 Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
