RackMount Kit for Vertiv Avocent ACS800 Series


RM-VT-T1:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

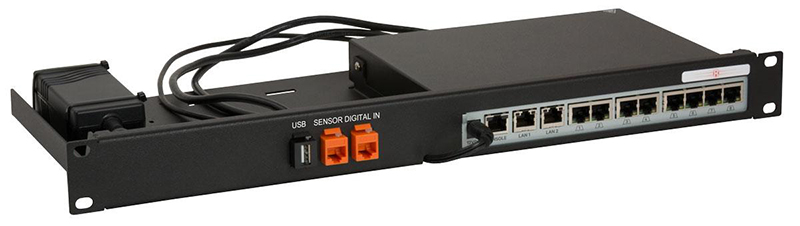

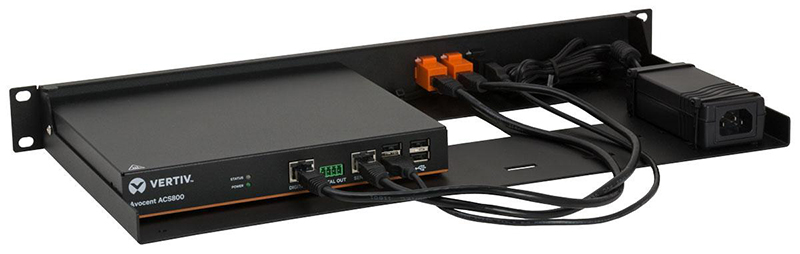

The RM-VT-T1 gives you the ability to mount your Vertiv desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixated to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Vertiv device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Vertiv
For Use	Vertiv Avocent ACS800 series
Color	RAL 9005 Jet Black
Height	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	14
Console port to the front	Yes
Cables	3x 0.5m cables
Couplers	3x RJ45 couplers
What's in the box	1x VT-Rack + RJ45 couplers Cables  Assembly materials Installation guide

Download the RM-VT-T1 Datasheet (PDF).
