RackMount Kit for Dell / VMware SD-WAN Edge 600 Series


RM-DE-T1:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

The RM-DE-T1 gives you the ability to mount your Dell/VMware desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. The firewall is placed backwards in the rack, to ensure the connections are easily accessible. The front panel can be detached and reattached to the front of the rack. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Dell/VMware device in the kit, place the retainers, and fix the power supply to the rack.

Other colors can be delivered on a project basis.

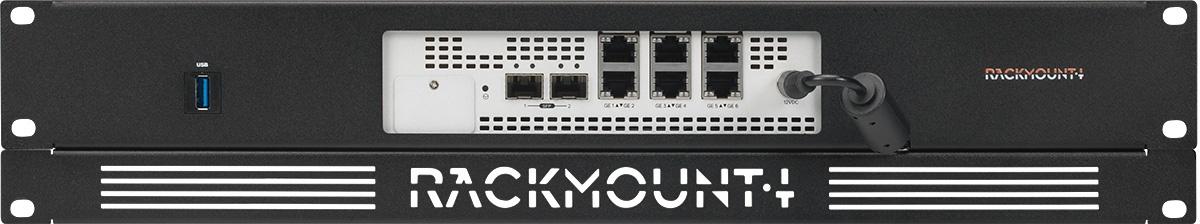

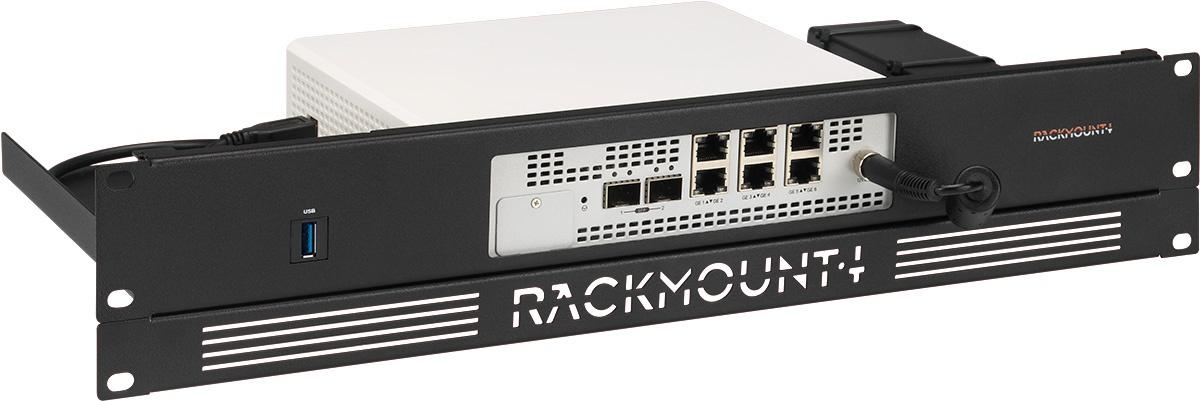

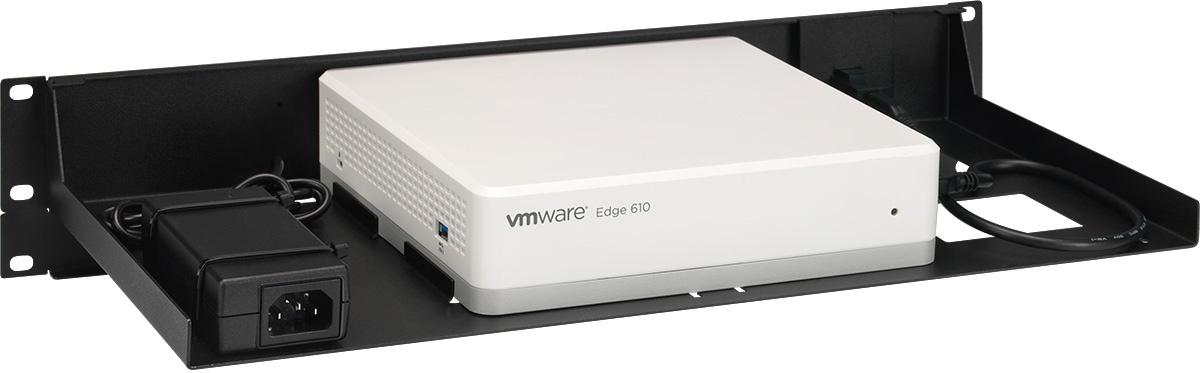

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Dell / VMware
For Use	SD-WAN Edge 600-Series
Color	RAL 9004 Black
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 x 18.98 x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front	8
Console port to the front	Yes
Cables	1x 0.5 cable
Couplers	No RJ45 keystones 1x USB Keystones
What's in the box	1x DE-Rack 1x Rackmount.IT front plate Assembly materials Installation guide

Download the RM-DE-T1 Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
