RackMount Kit for SonicWall SWS12-8 / SWS12-8POE


RM-SW-T8:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

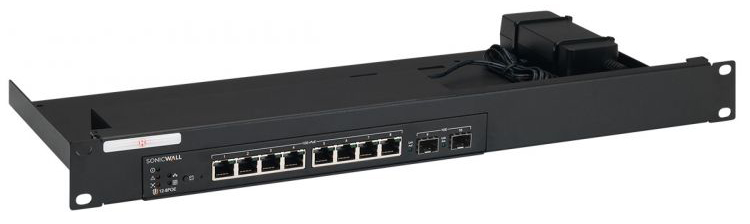

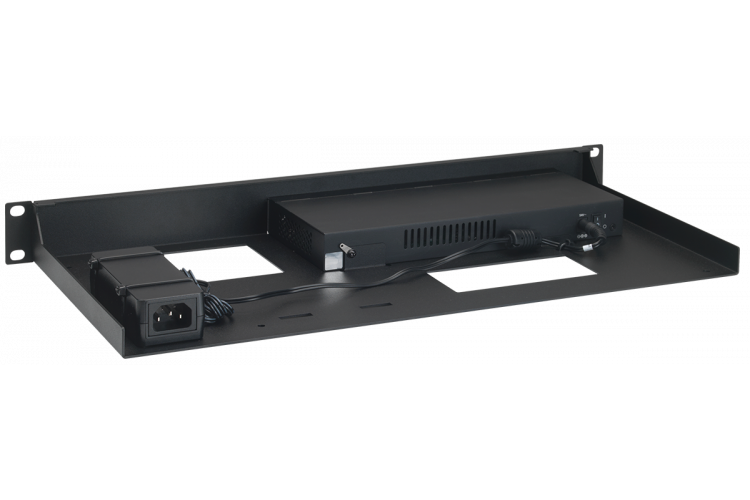

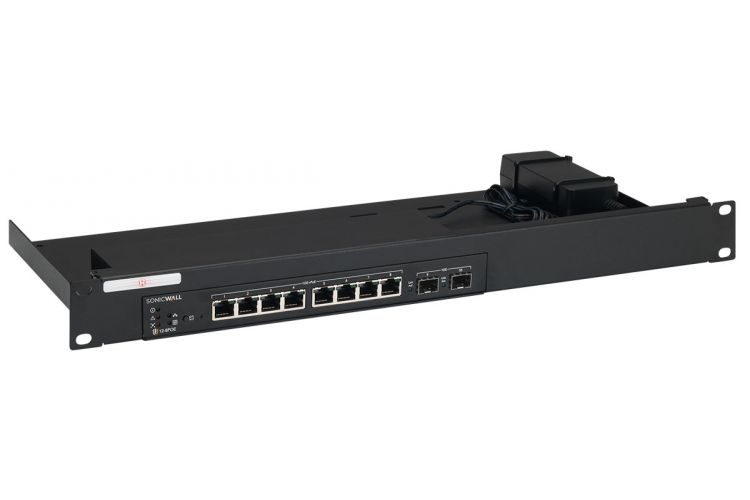

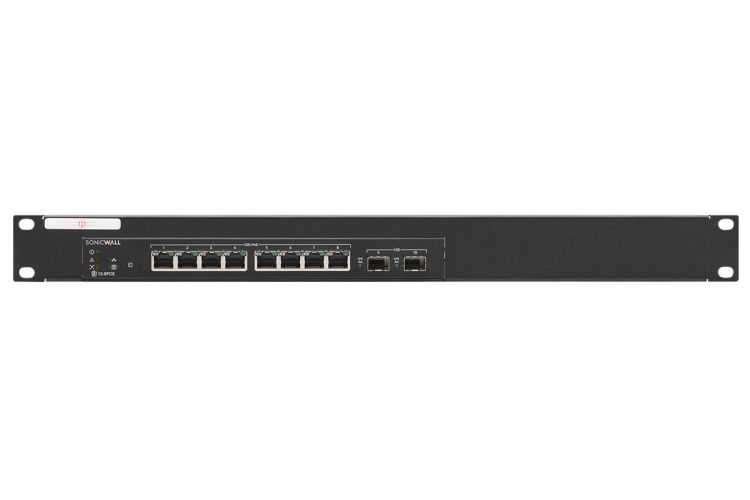

The RM-SW-T8 gives you the ability to mount your SonicWall desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your SonicWall device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:

Specifications
Color	RAL 9005
Height	1U
Dimensions (height x width x depth)	1.73 x 18.98 x 8.54 in.
Number of connections brought to the front	10
Console port to the front	No
Cables	None
Couplers	None
Supported Models	- SonicWalll SWS12-8 - SonicWall SWS12-8POE
What's in the box?	- 1x SW-Rack + couplers - Cables - Assembly materials - Installation guide

Download the RM-SW-T8 Datasheet (PDF).
