RackMount Kit for Cisco Meraki MS120-8FP-HW


RM-CI-T7:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

The RM-CI-T7 gives you the ability to mount your Cisco Meraki Switch in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Meraki Switch in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

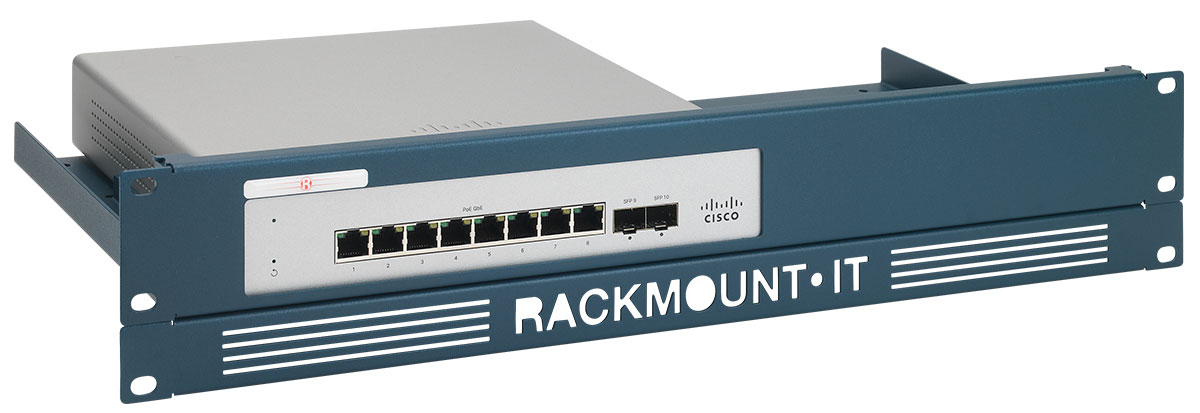

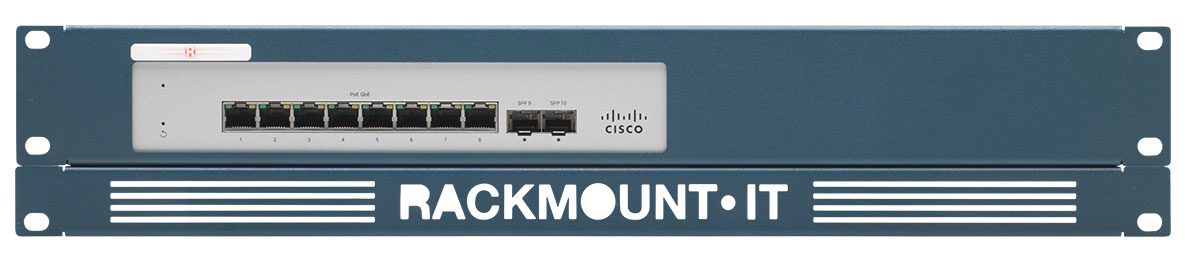

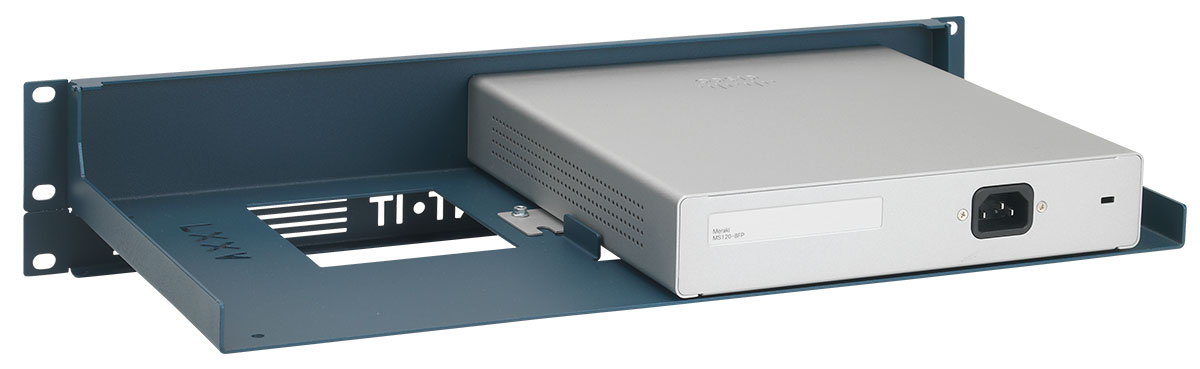

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Cisco
For Use	Cisco Meraki MS120-8FP-HW
Color	Metallic Blue
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front	10
Console port to the front	Yes
Cables	None
Couplers	None
What's in the box	1x Cisrack 1x Rackmount.IT front plate Assembly materials Installation guide

Download the RM-CI-T7 Datasheet (PDF).
