RackMount Kit for Juniper Networks SRX320


RM-JN-T2:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

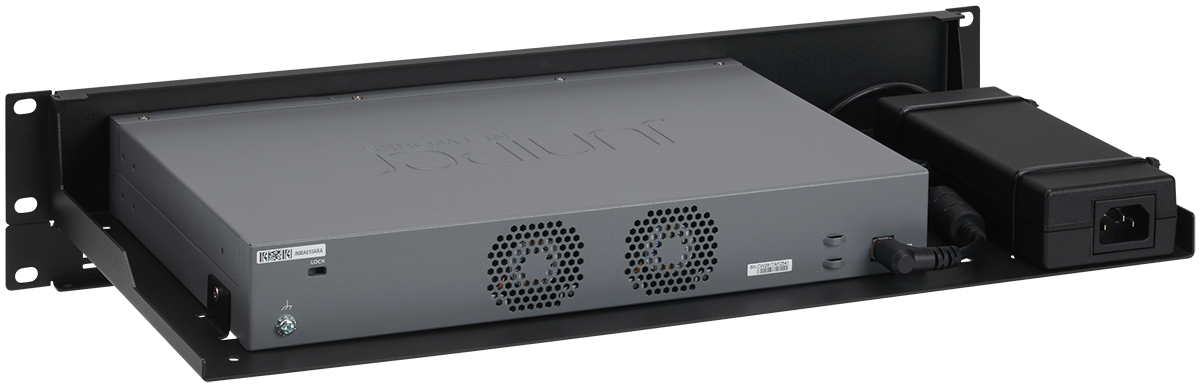

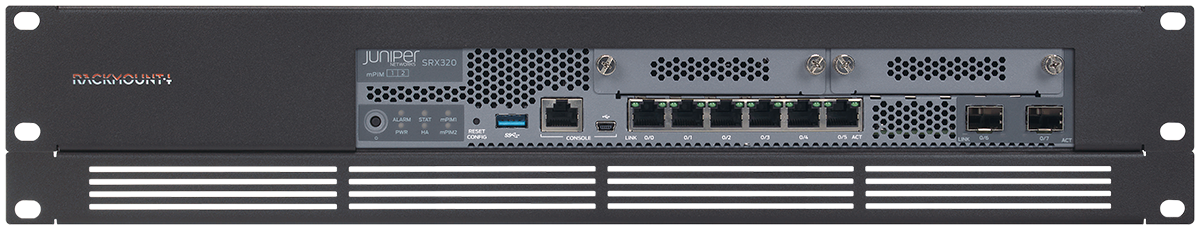

The RM-JN-T2 gives you the ability to mount your Juniper desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Juniper device in the kit, place the retainers, and fix the power supply to the rack.

Other colors can be delivered on a project basis.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Juniper Networks
For Use	SRX320
Color	RAL 9004 Signal Black
Height	1.3U / 2U
Dimensions (height x width x depth)	2.32/3.46 x 18.98 x 8.54 in. (59/88 x 482 x 217 mm)
Number of connections brought to the front	None
Console port to the front	Yes
Cables	None
Couplers	None
What's in the box	1x JP-Rack 1x Rackmount.IT front plate Assembly materials Installation guide

Download the RM-JN-T2 Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
