RackMount Kit for Fortinet FortiSwitch 108F


RM-FR-T17:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

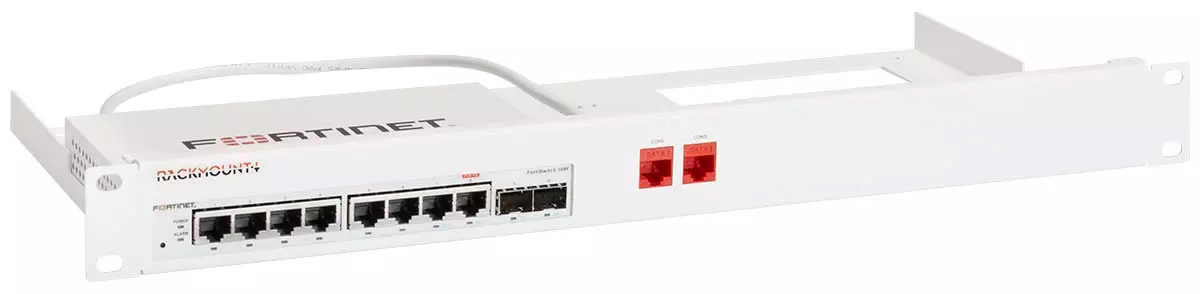

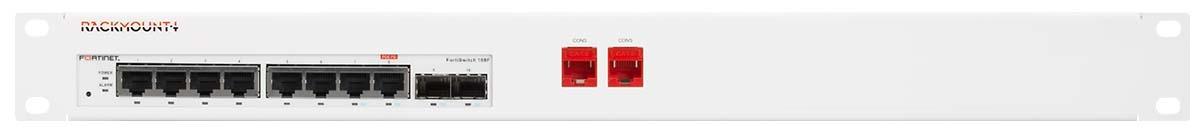

The RM-FR-T17 gives you the ability to mount your Fortinet desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.
This model supports two firewalls and two power supplies.

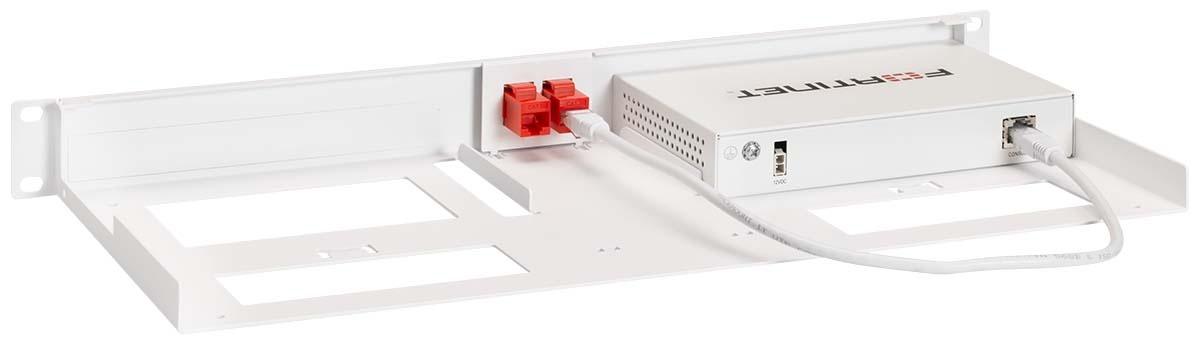

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables and keystones, and fix the power supply to the rack.

Other colors can be delivered on a project basis.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate FortiSwitch 108F
Color	RAL 9003 White
Height	1U
Dimensions (height x width x depth)	1.73 x 18.98 x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	2
Console port to the front	Yes
Cables	2x 0.5m cables
Couplers	1x RJ45 coupler
What's in the box	1x FortiRack + RJ45 couplers Cables Assembly materials Installation guide

Download the RM-FR-T17 Datasheet (PDF).
