RackMount Kit for Fortinet FortiGate 30E, 50E, 51E, 52E


RM-FR-T9:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

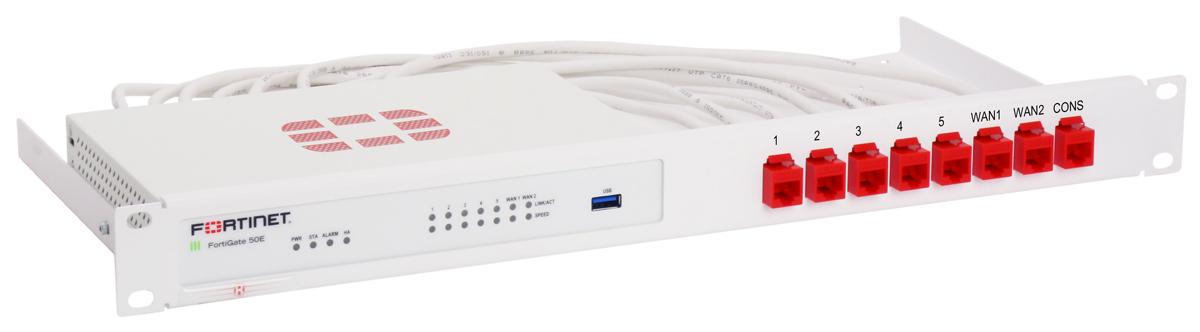

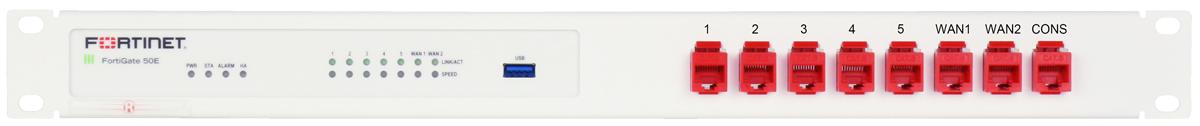

The RM-FR-T9 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access.

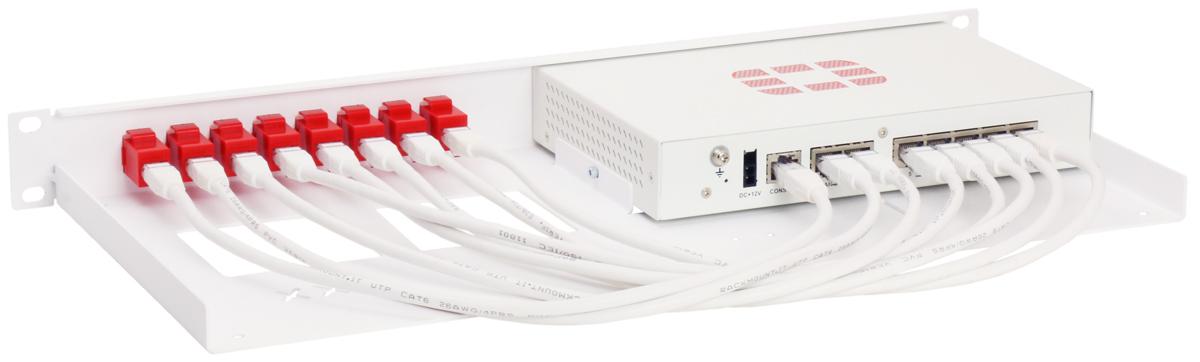

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers and connect the supplied cables to the keystones.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate 30E FortiGate 50E  FortiGate 51E FortiGate 52E
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	8
Console port to the front	Yes
Cables	8x 0.5m cables
Couplers	8x RJ45 couplers
What's in the box	1x FortiRack + RJ45 couplers Cables Assembly materials Installation guide

Download the RM-FR-T9 Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
