RackMount Kit for SonicWall TZ270 / TZ370 / TZ470
RM-SW-T10:
This product is no longer available.
Please Contact us for more information.
All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

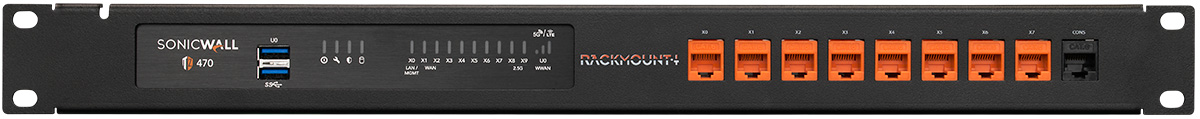

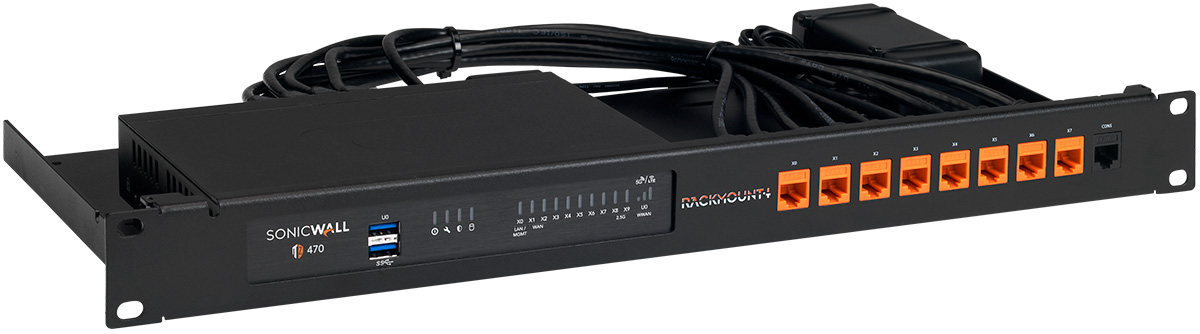

The RM-SW-T10 gives you the ability to mount your SonicWall desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

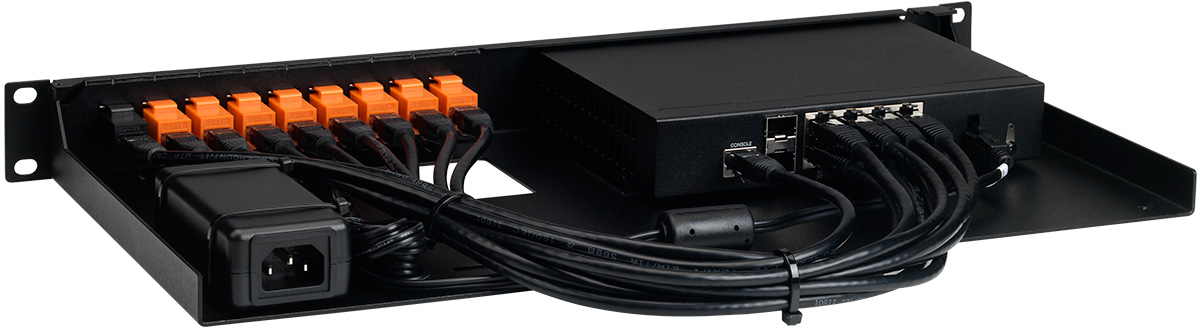

Assembly will take about 5 minutes. Simply slide your SonicWall device in the kit, place the retainers, connect the supplied cables and keystones, and fix the power supply to the rack.
Image Views:
| Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | Sonicwall |
| For Use |
|
| Color | RAL 9005 Jet Black |
| Form Factor | 1U |
| Dimensions (height x width x depth) |
44 x 482 x 217mm |
| Number of connections brought to the front | 9 |
| Console port to the front | Yes |
| Cables | 9x 0.5m cables |
| Couplers | 9x RJ45 couplers |
| What's in the box |
|
Download the RM-SW-T10 Datasheet (PDF).
