RackMount Kit for Sophos SG 125 / 135 Rev. 3


RM-SR-T3:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

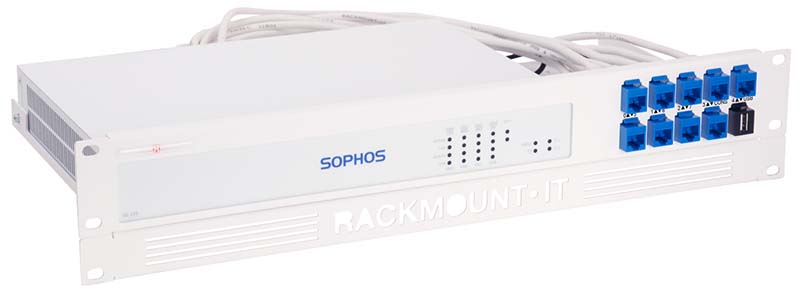

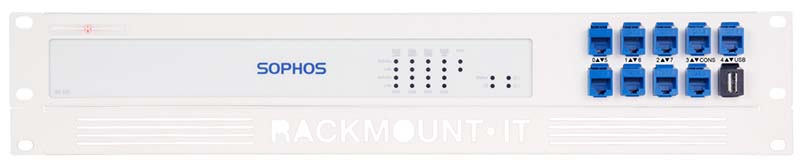

The RM-SR-T3 gives you the ability to mount your Sophos desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

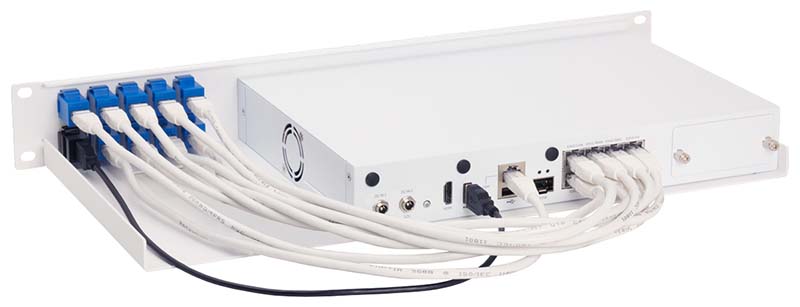

Assembly will take about 5 minutes. Simply slide your Sophos device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Sophos
For Use	Sophos SG 125 Rev. 3 Sophos SG 135 Rev. 3
Color	RAL 9003 Signal White
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front	10
Console port to the front	Yes
Cables	10x 0.5m cables
Couplers	10x RJ45 couplers
What's in the box	1x SoRack + RJ45 couplers 1x Rackmount.IT front plate Cables Assembly materials Installation guide

Download the RM-SR-T3 Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
