RackMount Kit for Check Point 770, 790, 1470, 1490


RM-CP-T3:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

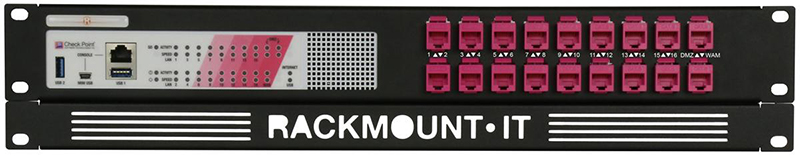

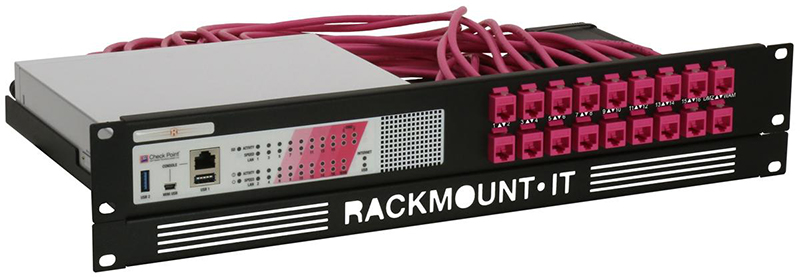

The RM-CP-T3 gives you the ability to mount your Check Point desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

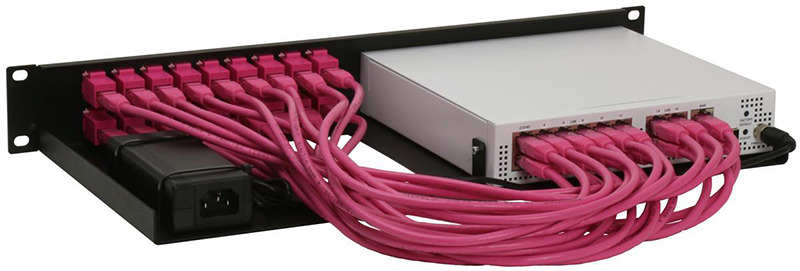

Assembly will take about 5 minutes. Simply slide your Check Point device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Check Point
For Use	Check Point 770 Check Point 790 Check Point 1470 Check Point 1490
Color	RAL 9005 Jet Black
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front	18
Console port to the front	Yes
Cables	18x 0.5m cables
Couplers	18x RJ45 couplers
What's in the box	1x CP-Rack + RJ45 couplers 1x Rackmount.IT front plate Cables  Assembly materials Installation guide

Download the RM-CP-T3 Datasheet (PDF).
