RackMount Kit for Cisco Meraki MX68, MX68W, and MX68CW


RM-CI-T14-MC:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

This model contains and houses an additional media converter.

The RM-CI-T14-MC gives you the ability to mount your Cisco desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Cisco device in the kit, place the retainers, and fix the power supply to the rack.

Other colors can be delivered on a project basis.

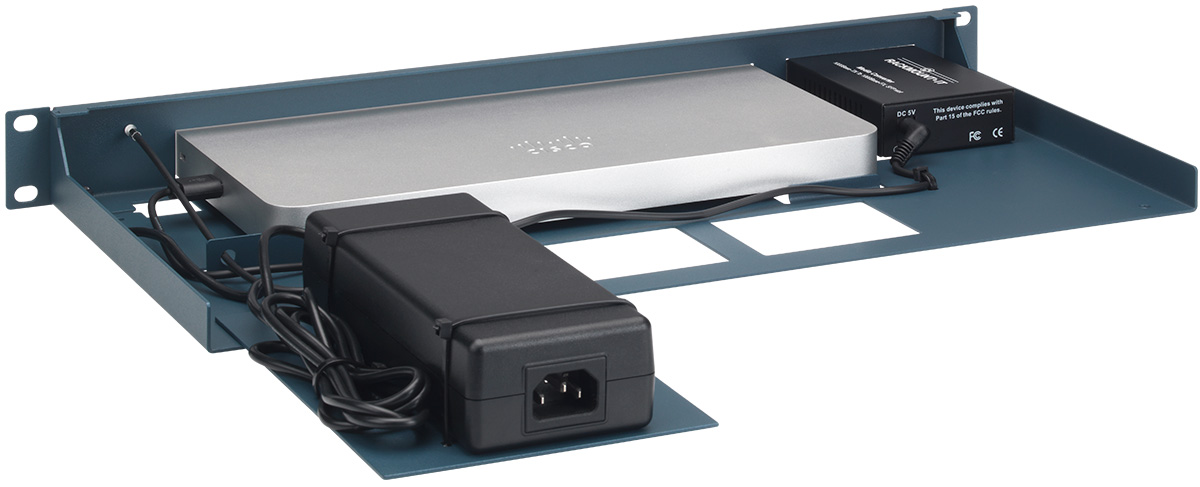

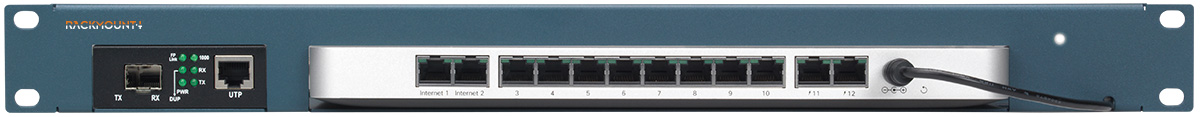

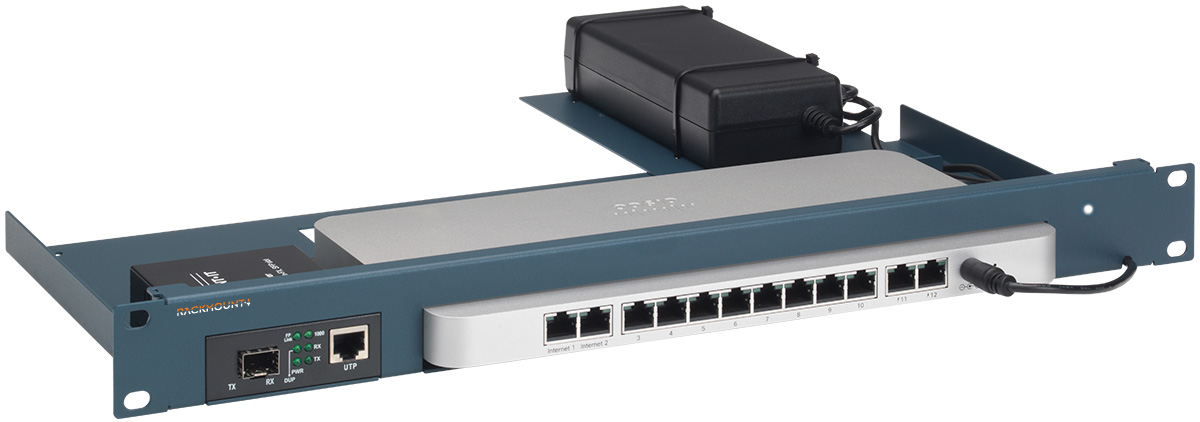

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Cisco Meraki
For Use	Cisco Meraki MX68 Cisco Meraki MX68W Cisco Meraki MX68CW
Color	Metallic Blue
Height	1U
Dimensions (height x width x depth)	1.73 x 18.98 x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	12
Console port to the front	Yes
Cables	None
Couplers	None
What's in the box	1x CisRack Rackmount.IT Media Converter Assembly materials Installation guide

Download the RM-CI-T14-MC Datasheet (PDF).
