RackMount RM-CI-T1 for Cisco ASA 5505, WLC-2106, WLC-2112, WLC-2125

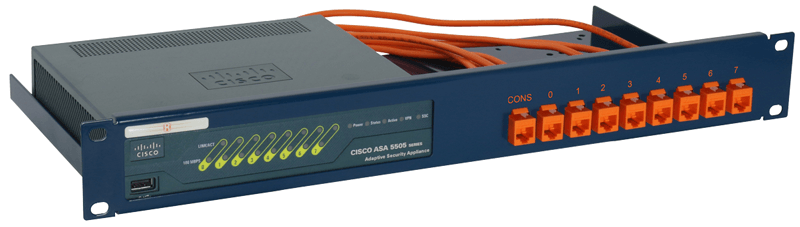

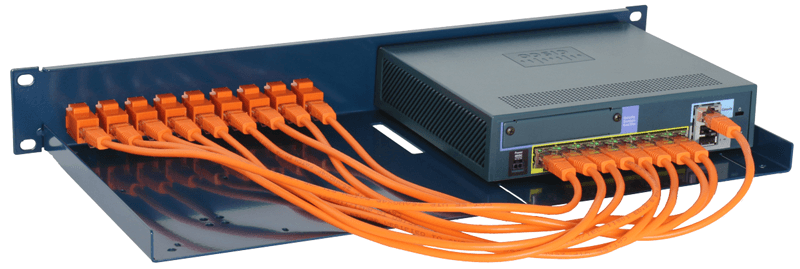

The RM-CI-T1 gives you the ability to mount your Cisco desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. On top of that, the connections from the back are brought to the front, including the console port. The power supply is fixated to prevent an accidental loss of power.
Assembly will take about 5 minutes. Simply slide your Cisco device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.
Other colors can be delivered on project basis
The RM-CI-T1 will clean up your 19 inch rack and increase the reliability of your Cisco appliance. Next to standard models, Rackmount.IT can provide custom made kits in any color on project needs. Key features are:
- Custom fit rack mount kit for Cisco ASA 5505 / WLC-2106 / WKC-2112 / WKC-2125
- Easy 5-minute assembly in a 19 inch rack.

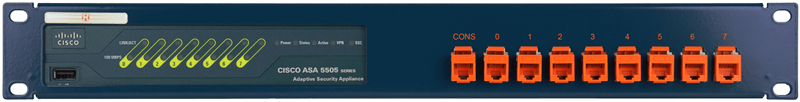

- Front positioned network connections
- Fixated power supply prevents accidental loss of power
- The complete set includes cables and keystones.
|Color||RAL 5020 OceanBlue|
(height x width x depth)
|59 x 482 x 217mm|
|Number of connections brought to the front||9|
|Console port to the front||Yes|
|Cables||9x 0.5m cables|
|Couplers||9x RJ45 couplers|
|Supported Models||- Cisco ASA 5505
- Cisco WLC-2106
- Cisco WLC-2112
- Cisco WLC-2125
|What's in the box||- 1x Cisrack + RJ45 couplers
- Assembly materials
- Installation guide
Download the RM CI T1 Datasheet (PDF).
